Emergency Stop Buttons
Emergency stop buttons (E-Stop) are used to stop equipment in critical situations and are an integral part of the machine’s safety circuit.
Complete Assembly for Part Number 52-302 Includes:
1 – 22mm red mushroom push button
1 – Emergency Stop Legend Plate with yellow background
2 – NC Contact Blocks
1 – Aluminum enclosure mounting box which contains the E-Stop components listed above.

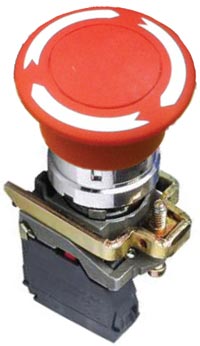

Push Button
- Ø22mm Mushroom head
- Push Lock and Twist-to-release
- Non-illuminated
- Red in color
- UL, cUL, CE approved contact blocks
Legend Plate

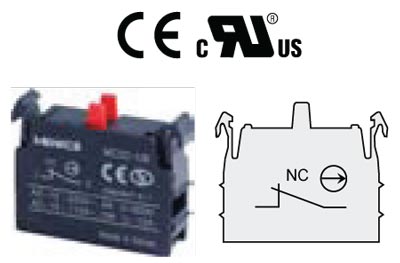

Contact Blocks
- Contact Capacity: 110 VAC 10A / 220 VAC 5A
- 2 NC Contact Blocks
Enclosure
- Aluminum enclosure
- 1 Hole
