Installation Manuals

Model SS Safety Light Curtains | Installation Manual
Safety light curtain with no 3rd box or controller. Unit is rated Nema 4 (IP 56) and has two monitored solid state PNP outputs. Mechanical captive contact (dry) safety relays also available. Input power is 24VDC. Complete system diagnostics, mounting brackets and connection cables are supplied standard. Type 4 / Category 4. Made in USA.

---

Model MG Safety Light Curtains | Installation Manual
Safety light curtain with a free standing Nema 12 (IP 64) metal box controller. Input power can be 110V, 220 VAC or 24 VDC. Excellent for free standing enclosure light curtain applications. Complete system diagnostics, mounting brackets and connecting cables supplied standard.  Type 4 / Category 4. Made in USA.

---

Model DR Safety Light Curtains | Installation Manual
Safety light curtain with a DIN-rail mountable controller rated NEMA 1 (IP 10) for mounting into an existing control panel. Input power is 24VDC.  Complete system diagnostics, blanking capability, mounting brackets and connecting cables are supplied standard.  Type 4 / Category 4. Made in USA.

---

Model CA Safety Light Curtains | Installation Manual
Cascading safety light curtains provide the user the ability to connect additional sets of light curtains by daisy chaining multiple emitters and receivers together. The cascading of safety light curtains provides multiple areas of guarding in any plane (X, Y, Z), while utilizing the control reliable dual safety outputs (PNP) from the Category 4 safety device for the safety outputs to the machine control. The ability to guard multiple areas on irregular shaped machines by cascading safety light curtains reduces wiring and provides a lower cost yet effective machine guarding solution. 24VDC input powered unit. Mounting brackets and connecting cables are supplied standard. Type 4 / Category 4. Made in USA.

---

Model PPG Safety Light Curtains | Installation Manual
Free standing two pylon 110 VAC input power system with built-in monitored safety relays (dry). Multiple beam spacing options are available for arm and body detection. Model PPG is designed for perimeter guarding applications and incorporates latching safety relays (dry) with mounted manual reset button on the receiver pylon. Type 4 / Category 4. Made in USA.

---

SLT Series | Installation Manual







---

NSD Safety Mats | Installation Manual
Heavy duty and flexible safety mat system. The Category 3 controller meets all safety standards. This style system is the traditional style of a normally open (NO) switch mats. Customized shapes and sizes of mats is our specialty with large 6′ x 12′ single mat capability. Made in USA.

---

STTS Safety Mats | Installation Manual
Heavy duty and flexible safety mat system. The Category 4 STTS Controller actually pulses each individual mat every 19Ms to assure no tampering to the mat or controller was attempted. Simply the most durable safety mat system in the world. Customized shapes and sizes of mats is our specialty with large 6′ x 12′ single mat capability. Made in USA.

---

Safety Mat Only (no controller) | Installation Manual







---

Ergonomic Palm Buttons UltraTouch | Installation Manual
Ergonomic palm buttons are machine operator activation devices that eliminate the force, position and pressure required to activate an industrial machine when compared to the old style and high pressure spring loaded mechanical palm buttons. Our unique design requires no force or pressure and safely maintains the premier ergonomic position of neutral, 0° deviation and maintains 100% hand power for the machine operator. This premier ergonomic product can reduce or eliminate the harmful effects of carpal tunnel syndrome and other ergonomic maladies caused by high pressure spring loaded mushroom palm buttons. Product manufacturer and Made in USA.

---

Safety Relay HUB | Installation Manual
The Safety Relay HUB from Pinnacle Systems replaces multiple individual freestanding safety relay modules into one completely integrated and multi-faceted safety center. The Safety Relay HUB contains a multitude of input wiring provisions for various safety devices that will be incorporated on the machine to be guarded or controlled. The Safety Relay HUB also contains dry contact safety relays and solid-state outputs in one complete, compact control reliable safety controller package. This provides ease of installation, improved safety and economic improvement on both installation and hardware cost.

---

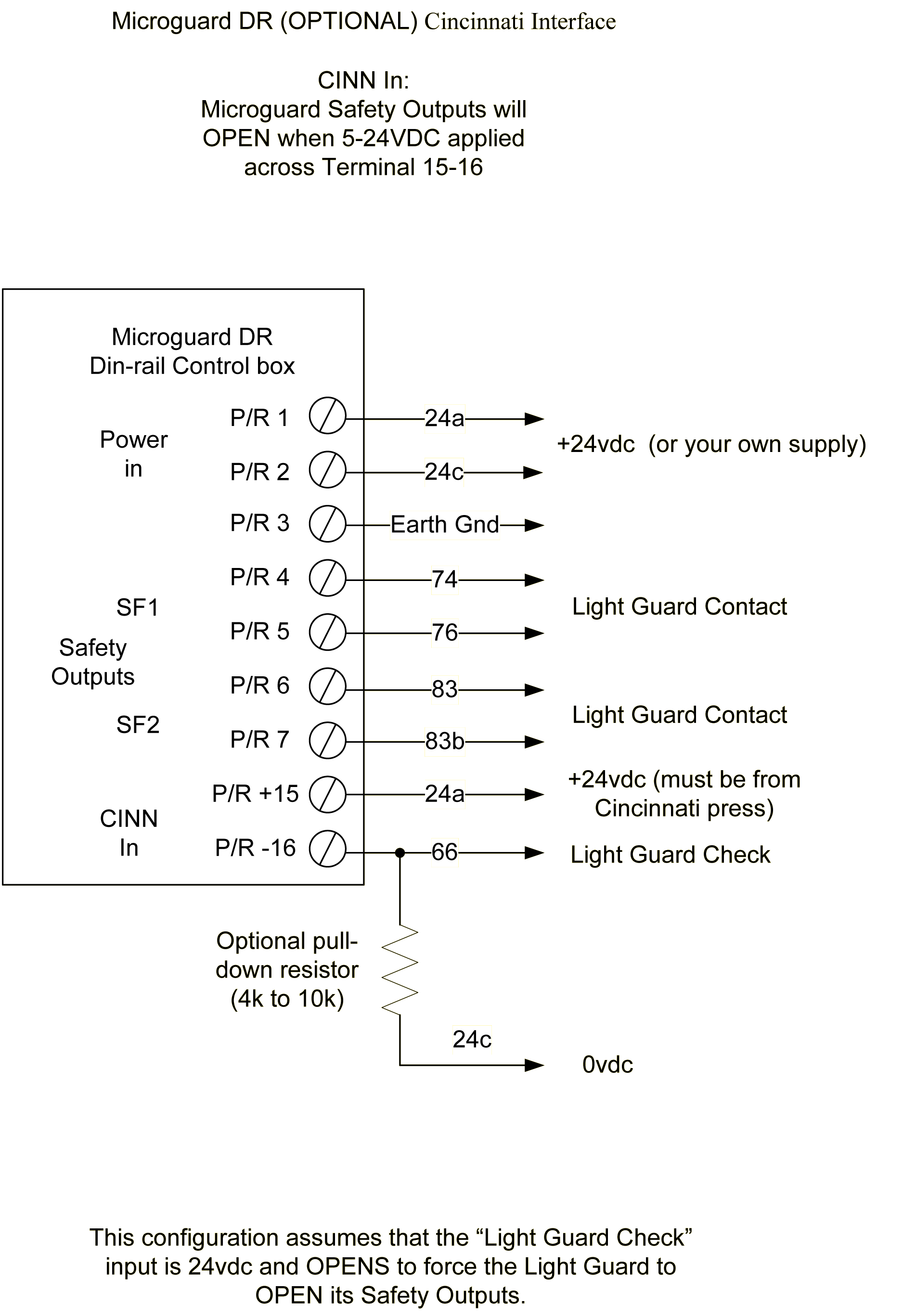

Cincinnati Press interface (for Model MG, DR, SS, CA, and CE Safety Light Curtains) | Wiring Diagrams









---

NSD 3580 and NSD 3890 Controller Modules | Wiring Diagrams and Installation Instructions







---

4 Sided Guarding for Model PPG (with Dual stud Brackets, TRM Mirrors, and Model 8000 Pedestals) | Alignment Diagram









---

Models MG, DR, SS and CA 4 Sided Guarding with Dual Stud Guard Brackets, TRM Mirrors and Model 8000 Pedestals | Wiring Diagram







---

Models MG, DR, SS and CA 3 Sided Guarding with Dual Stud Guard Brackets, TRM Mirrors and Model 8000 Pedestals | Wiring Diagram









If you need additional Support, please contact our Manufacturing and Product Service Facility at service@pinnaclesystems.com or (630) 443-8542.
