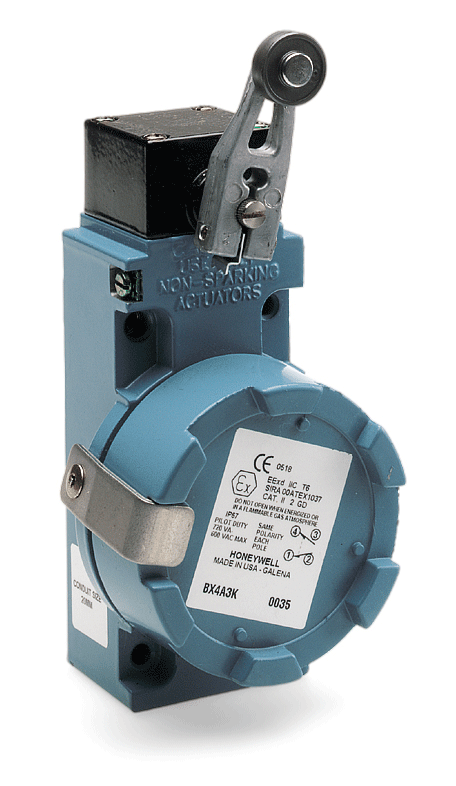

BX Series Hazardous Location Switches

Lever not included in photo above

Description:

Honeywell explosion-proof switches are designed specifically for use in hazardous location applications. The MICRO SWITCH™ BX enclosure is sealed for protection against corrosion, water, dust and oil as defined in NEMA 1, 3, 4, 6, 7, 9 and 13 and IP67 as defined in IEC 529. These enclosures also meet the European Hazardous Locations Designation: EExd IIC T6 category II 2 GD, SIRA 00ATEX 1037X. The entire series BX complies with the European Directive on Equipment and Protective Systems Intended for Use in Potentially Explosive Atmospheres (94/9/EC) commonly referred to as the ATEX Directive. Compliance with the Essential Health and Safety Requirements has been assured by compliance with EN50014 1997 and EN50018 1994. MICRO SWITCH™ BX with conduit types 1/2-14NPT, 3/4-14NPT also meet the North American Hazardous Locations Designation: Class I, Groups B, C and D; Class II, Groups E, F and G and comply with UL Standard: UL 894, CSA Standard: C22.2 No. 25-1966, C22.2 No. 30-M1986. The MICRO SWITCH™ BX is ideal for outdoor use or in adverse environments where a combination of explosion-proof plus sealing requirements are needed. To comply with explosion-proof requirements the BX has flame paths within the housing, which cool exploding gases below the ignition temperature before they reach explosive gases surrounding the housing. Flame paths on the BX are (1) an extended plunger between the switch cavity and head and (2) the cover-housing threads on the front of the switch.

live

Features:

UL, CSA and European approvals
Sealing - applicable portions of IP67 and NEMA 1, 3, 4, 6, 7, 9, and 13
Diverse conduit selection for wide range of applications
Compatible with LSX
Tracking interchangeability with MICRO SWITCH ML-E1 and HDLS
Variety of heads and non-sparking actuators
10 A continuous carry electrical rating
Choice of silver or gold contacts
Internal grounding screw

live

Potential Applications:

Control valves and actuators
Offshore drilling
Grain elevators
Petrochemical plants
Chemical plants
Waste treatment
Paint booths
Mining conveyors
Pulp and paper coating
Hazardous waste handling

live

BX Series Models Available

BX Series 2
Lever not included in photo above

Part Number	BX4A3K-1A
Description	Weather sealed, Explosion-proof switch;Div 1, Class I1, Groups B, C, & D; Div 1, Class II, Groups E, F, & G
Features	Side rotary switch with 1.5 inch lever; snap action, double break
Housing Material	Die Cast Zinc
Approvals	UL, CSA, ATEX, IEC Ex
Sealing	IP67; NEMA 1, 3, 4, 6, 7, 9, 13
Electrical	10A continuous
Circuitry	1NC/1NO
Measurements	146.1mm x 80.8mm x 72.9mm
Temperature Range	-40 to 70C

BX Series

Part Number	BX4C3K
Description	Weather sealed, Explosion-proof switch;Div 1, Class I1, Groups B, C, & D; Div 1, Class II, Groups E, F, & G
Features	Top pin plunger; snap action, double break
Housing Material	Die Cast Zinc
Approvals	UL, CSA, ATEX, IEC Ex
Sealing	IP67; NEMA 1, 3, 4, 6, 7, 9, 13
Electrical	10A continuous
Circuitry	1NC/1NO
Measurements	146.1mm x 80.8mm x 72.9mm
Temperature Range	-40 to 70C

live

Additional Downloads

BX Series Single Page Printable Document PDF Document

BX Series Engineering Drawings PDF Document
