STTS

Controller Dimensions

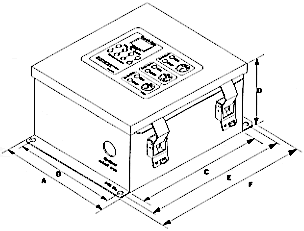

Metal Box Controller Dimensions (Inches/Millimeters)

Dim "A"	Dim "B"	Dim "C"	Dim "D"	Dim "E"	Dim "F"
9.00"	7.75"	10.00"	5.25"	10.75"	11.50"
228.6mm	196.8mm	254mm	133.3mm	273mm	292.1mm

*Note: Enclosure mounted plug receptacles are mounted on the enclosure bottom.
Requires 3/76 inches/millimeters clearance.

Board Only System Dimensions
Printed Circuit Boards
6.5 x 8 inches
165.1 x 203.2 millimeters

Mounting Plate Size
8.87 x 8.87 inches
225.4 x 225.4 millimeters

Mounting Backplate Holes
8 x 8 inches inch centers
203.2 x 203.2 millimeter centers

live

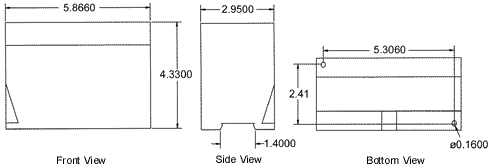

DIN-rail Controller Dimensions

DIN-rail Dimensions

live

Safety Mat Label

Provides immediate safety mat system information required by international guarding standards. The label is located at the corner of the mat near the wire exit position. Actual size is 3-3/8” x 2-1/8."

Bar coding is supplied standard to ease in receiving and inventory control.
Customized labels are available.

Safety Mat Label

live

Mat Chemical Resistance The mat compounds have excellent resistance to acids, alkalies and salts. Hot acids and alkalies as well as concentrated oxidizing and organic acids have a deleterious effect on prolonged exposure.
Water	E	Sulfuric Acid	F to E	Benzene	P
Ethyl Alcohol	E	Nitric Acid	F to E	Acetone	P
Sodium Chloride	E	Acetic Acid	F	Trichlorethylene	P to F
Bleach	E	Gasoline	F
Hydrochloric Acid	F to E	ASTM 1 Oil	F
KEY: E = Excellent; F = Fair; P = Poor

live

Components and Specifications


*Mat Wiring* — Yellow PVC jacketed, 4 conductor, black, white, blue, brown 300V, 90C, 24AWG, CSA & UL listed. *Mat Plug Assembly* — Yellow PVC jacketed, snap connection, 4 pole black, white, blue, brown 300V, 90C, 24AWG, CSA & UL listed. NEMA 4, IP 65. *Mat Cable Diameter* — .18”/4.6mm for wire and plug assembly. *Mat Housing* — .25”/6.35mm top and bottom mat housing, cross drain built-in on mat bottom, hermetically sealed. Special mat housings available, consult factory. *Perimeter Trim* — Part # M001 / High-grade aluminum # 6063-T5 *Active Coupler* — Part # M003 / High-grade aluminum # 6063-T5 *Wire Raceway* — Part # M002 / High-strength PVC (black) *Mat Temperature Rating* — -150C to 550C / 40F to 1300F
