GKN Series Safety Interlock

GKN Series

Description:

The GKN Series safety interlock switches provide superior reliability in a compact, cost-effective package size.

live

Features:

Red body color
Positive opening operation of normally closed contacts(conforming to IEC/EN 60947-5-1-3)
Choice of actuators
Double insulated per IEC 60947-5-1
Global approvals (cULus, CE, CCC)
Three cable entries
Large wiring cavity
Large M20 cable entry
Oblique native 0.5 in NPT conduit
Common footprint
Four-entry head

live

Benefits:

Flexibility in positioning on door/machine.
Ease of wiring/installation.
No conduit or cable adapters.
Meets global safety standards.
Drop-in compatibility with most brands.
No need to reconfigure head orientation.

live

Potential Applications:

Woodworking machinery
Printing/paper finishing equipment
Plastic molding equipment
Printing machinery
Bailing and pumping equipment
Semiconductor manufacturing equipment
Packaging wrapping
Specialty equipment

live

GKN Series Models Available

Part Number	GKNA21
Description	3 circuit switch with front or top key entry
Features	½“ NPT Conduit
Housing Material	Glass reinforced Polyamide
Approvals	UL, CSA, CE, BG
Sealing	IP65, NEMA 4
Electrical	6A @ 24VDC; 10A @ 110VAC
Circuitry	2NC/1NO
Measurements	90mm x 52mm x 33mm
Temperature Range	-30C to 80C

Part Number	GKNA30
Description	3 circuit switch with front or top key entry
Features	½“ NPT Conduit
Housing Material	Glass reinforced Polyamide
Approvals	UL, CSA, CE, BG
Sealing	IP65, NEMA 5
Electrical	6A @ 24VDC; 10A @ 110VAC
Circuitry	3NC
Measurements	90mm x 52mm x 33mm
Temperature Range	-30C to 80C

live

GKN Series Accessories

GKZ

Actual configuration varies to match switch

Part Number

GKZ42

Description

90° key

Safety Switch Key

Actual configuration varies to match switch

Part Number

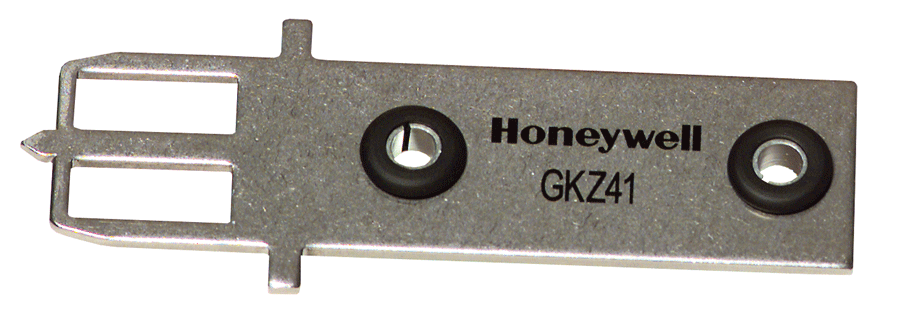

GKZ41

Description

Straight Key

GKZ43

Actual configuration varies to match switch

Part Number

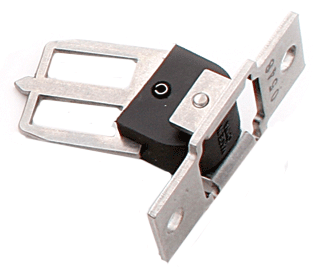

GKZ43

Description

Flexible key with left/right movement

GKZ45

Actual configuration varies to match switch

Part Number

GKZ45

Description

Flexible key with multi-directional movement

Additional Downloads

GKN Series Single Page Printable Document PDF Document

GKN Series Engineering Drawing PDF Document

GKN Series Installation Instructions PDF Document

Print this page
