Safety Mat Systems

Please choose from our family of Safety Mat Systems listed below:

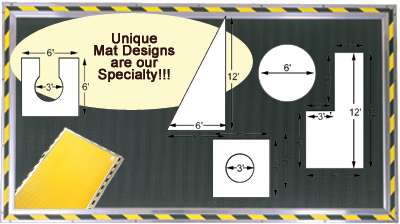

	NSD - New Switching Device Heavy duty and flexible safety mat system. The Category 3 controller meets all safety standards. This style system is the traditional style of a normally open (NO) switch mats. Customized shapes and sizes of mats is our specialty.

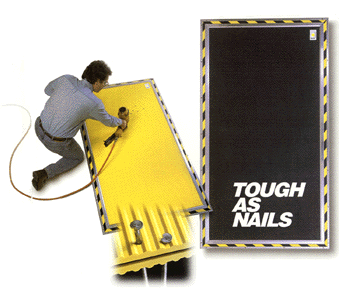

	STTS - Soft Tactile Transducer Sensor Heavy duty and flexible safety mat system. The Category 4 STTS Controller actually pulses each individual mat every 19Ms to assure no tampering to the mat or controller was attempted. Simply the most durable safety mat system in the world. Customized shapes and sizes of mats is our specialty.
	High-Temp Welding Mats High-temp non-skid safety mat for use in harsh environments such as robotic welding and hot forging applications. The mats can have irregular cuts, contours, notches or wiring locations to accommodate specific welding cell layouts. The maximum size of one mat is 72” wide x 144” long and can be made into any configuration.
