GSX Series Electromechanical

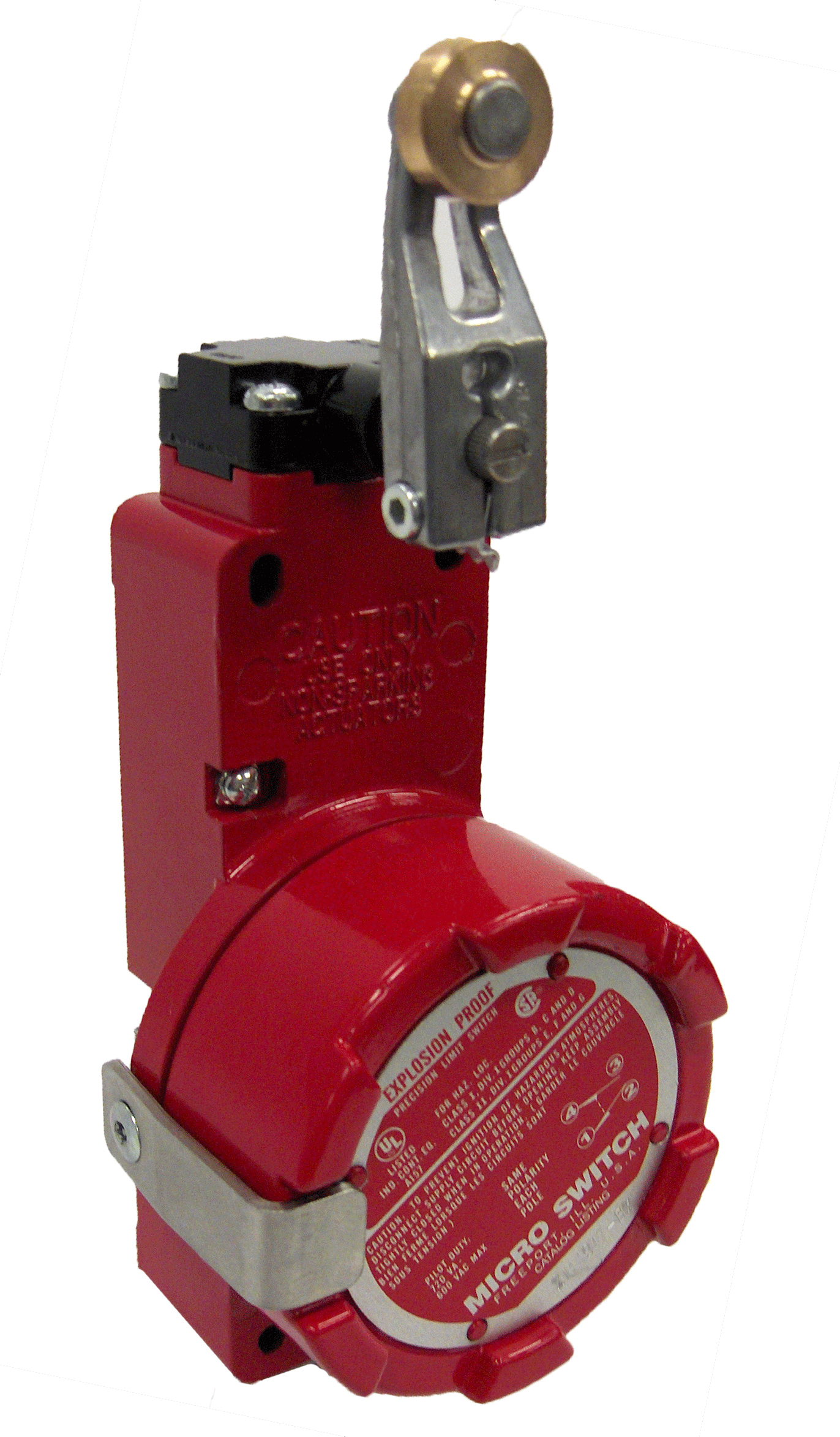

Lever not included in photo above

Description:

Honeywell Sensing and Control MICRO SWITCH™ GSX Series Explosion-Proof Safety Switches combine the world-class MICRO SWITCH™ global safety switch (GSS) with our superior explosion-proof housing from our LSX and BX product lines, offering our customers the best of our engineering expertise. The positive break feature is designed to provide a safe failure mode, ensuring the machine will not start, and therefore supporting a safer work environment. The GSX Series switch platform allows for over 10,000 actuator and switch combinations, enabling customers to source most of their safety and explosion-proof switch requirements to a single, global supplier.

Features:

Snap-action contacts with positive break
Positive action push plunger breaks current upon opening of door or aperature
Explosion-proof housing for hazardous locations
NEMA 1, 3, 4, 12, 13 and IP67 sealing
cULus, ATEX, IEC Ex
Simple installation
Positive break feature
Extensive switching options and actuator styles

live

Potential Applications:

Gates, doors, access panels, or cages on machinery in:
- Hydrocarbon refining
- Chemical processing
- Agricultural equipment
- Food processing
- Grain elevators

live

GSX Series Models Available

GSX Series

Lever not included in photo above

Part Number	GSXA42A1E
Description	Explosion-proof switch with direct acting (positive break) contacts
Features	Slow acting contacts, break before make; Side rotary with bronze roller
Housing Material	Die Cast Zinc
Approvals	cULus, ATEX, IECEx
Sealing	IP67; NEMA 1, 4, 6, 7, 9, 12, 13
Electrical	2.8A @ 24VDC; 6A @120VAC
Circuitry	2NC/1NO
Measurements	154.2mm x 44.5mm x 72mm
Temperature Range	-40 to 70C

Part Number	GSXA42B
Description	Explosion-proof switch with direct acting (positive break) contacts
Features	Slow acting contacts, break before make; Top pin plunger
Housing Material	Die Cast Zinc
Approvals	cULus, ATEX, IECEx
Sealing	IP67; NEMA 1, 4, 6, 7, 9, 12, 13
Electrical	2.8A @ 24VDC; 6A @120VAC
Circuitry	2NC/1NO
Measurements	154.2mm x 44.5mm x 72mm
Temperature Range	-40 to 70C

GSX Series 2

Part Number	GSXA42C
Description	Explosion-proof switch with direct acting (positive break) contacts
Features	Slow acting contacts, break before make; Top roller plunger
Housing Material	Die Cast Zinc
Approvals	cULus, ATEX, IECEx
Sealing	IP67; NEMA 1, 4, 6, 7, 9, 12, 13
Electrical	2.8A @ 24VDC; 6A @120VAC
Circuitry	2NC/1NO
Measurements	154.2mm x 44.5mm x 72mm
Temperature Range	-40 to 70C

live

Additional Downloads

GSX Series Single Page Printable Document PDF Document

GSX Series Engineering Drawings PDF Document

Print this page
